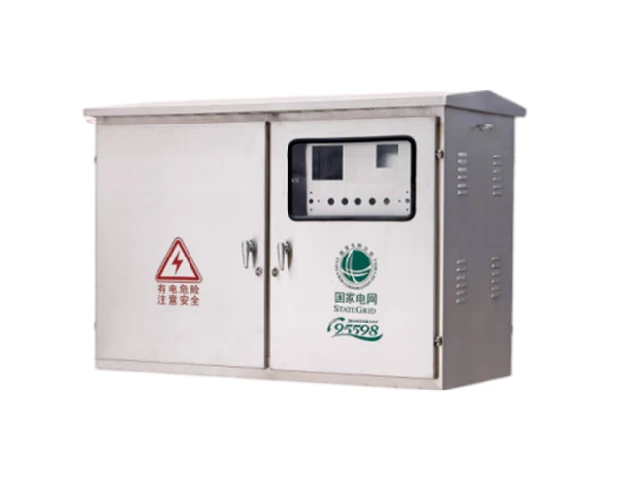

JP Outdoor Integrated Distribution Box

JP rural‑grid cabinet, also named JP integrated distribution box, is a dedicated outdoor all‑in‑one power‑distribution device designed for rural grid upgrade projects.
It combines power distribution, energy metering, protection control, operation monitoring and reactive‑power compensation inside one single cabinet.
With compact layout, high‑level protection grade and user‑friendly operation, this pole‑mounted box greatly enhances power‑supply reliability and reduces low‑voltage line losses. It supports intelligent management and future upgrade of urban‑rural power networks.

‑ Ambient temperature: -25℃ ~ 40℃, customized for extreme high/low‑temperature environment available
‑ Relative humidity: ≤ 90% at 20℃
‑ Installation altitude: ≤ 1000 m, special‑version customization for altitude above 1000 m
‑ Outdoor open‑air installation, anti‑rain, anti‑sunlight‑aging, anti‑dust
‑ No severe corrosive gas, explosive‑risk atmosphere around installation site

1. Independent four‑compartment separation Internal space is divided into 4 isolated chambers: main incoming switch room, metering room, distribution feeder room, reactive‑power compensation room. Isolated layout improves operation safety and simplifies daily maintenance.
2. Heavy‑duty stainless‑steel outdoor enclosure Cabinet shell thickness ≥1.5 mm stainless‑steel sheet, excellent anti‑rust and anti‑corrosion performance. Optimized ventilation grille prevents reptile & small‑animal intrusion. Triple security locking system with rain‑proof lock and anti‑theft bolt. Metering compartment is fully sealed for anti‑tamper protection. Surge‑protector & zinc‑oxide lightning‑arrester pre‑installed on incoming side, independent reliable earthing system.
3. Automatic reactive‑power compensation function Built‑in capacitor compensation unit, dynamically adjusts reactive‑power factor to cut power transmission loss. Reserved installation space for smart grid automation equipment, compatible with remote meter‑reading & energy‑management system. Cabinet door‑mount travel switch provides maintenance inspection lighting, fault‑status visual management.
4. Standardized modular design All inner components adopt DIN‑rail modular installation. Commissioning & maintenance efficiency raised by 50%. Compact pole‑mount design occupies minimal ground‑space, total system cost can be reduced by 30 %, compared with traditional separate‑unit power‑distribution schemes.

‑ GB/T 15576 Low‑voltage complete reactive‑power compensation assemblies
‑ GB/T 7251.2 Low‑voltage switchgear and controlgear assemblies
