KYN28‑24 Indoor Draw‑out Armored AC Metal‑Enclosed High‑Voltage Switchgear, 24kV

The KYN28‑24 armored removable AC metal‑enclosed switchgear is indoor high‑voltage switch cabinet, designed for three‑phase AC 50/60Hz power systems with rated voltage of 24kV.
It is widely deployed in power plants, substations, mining factories and high‑rise buildings, to receive, distribute electric energy and realize circuit control, protection & real‑time monitoring.
Full anti‑misoperation interlock functions are equipped: preventing moving‑cart operation under load, forbidding breaker closing while earthing switch is on, avoiding earthing‑switch closing on live circuits and blocking unauthorized access to live compartments.
This switchgear supports VS1, VN2 mid‑mounted vacuum circuit‑breakers and encapsulated vacuum switches. Bus‑bars adopt heat‑shrinkable tubing or epoxy‑coated insulation to optimize electrode performance. With compact layout, easy‑operation design and stable performance, it delivers high‑safety indoor power‑distribution.

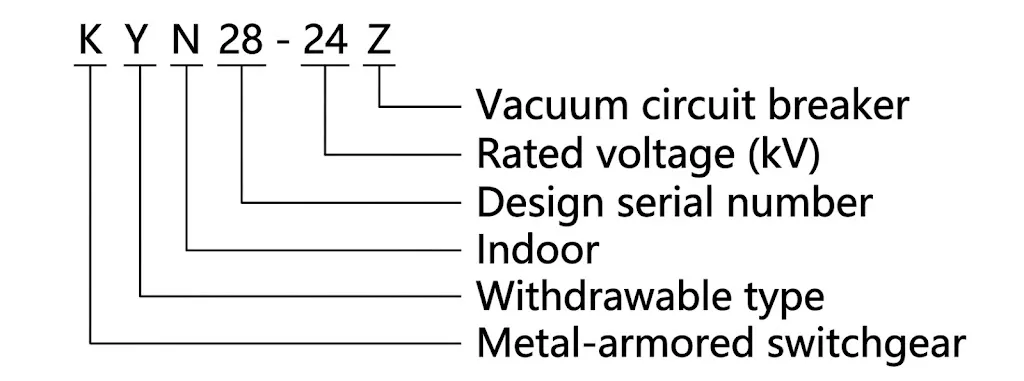

K‑Armored Metal‑clad Cabinet
Y‑Removable / Draw‑out Type
N‑Indoor Installation
28‑Design Serial Number
24‑Rated Voltage(kV)
Z‑Vacuum Circuit‑Breaker

• Ambient temperature: Max 40℃, Min -15℃; 24‑h average temperature ≤ 35℃
• Humidity: Daily‑average relative humidity ≤95%, Monthly‑average ≤90%; Water‑vapour pressure daily‑average ≤ 2.2kPa, monthly‑average ≤1.8kPa
• Altitude: ≤ 1000 m above sea‑level
• Surrounding air: No obvious dust, corrosive, flammable gas, vapour or salt fog pollution
• External vibration & shock: Negligible
• Electromagnetic interference in secondary circuit: Peak interference voltage ≤1.6kV

For operation environments exceeding standard requirements, special technical solutions can be negotiated between our factory and buyers. Heaters are installed inside the cabinet to prevent condensation, which shall be turned‑on during standby or regular operation.
